Acoustic - Tile for wall, ceiling and furniture, micro perforation T-8
Acoustic - Tile for wall, ceiling and furniture, medium perforation T-16

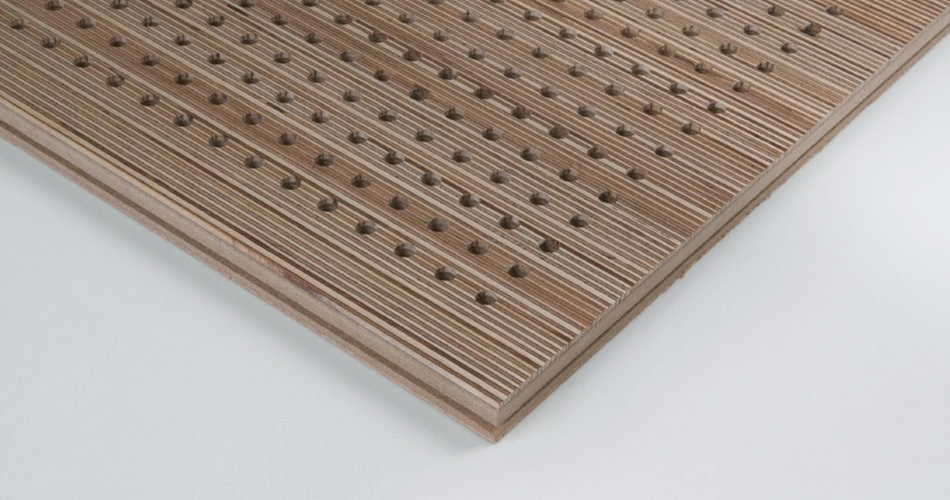

Acoustic - Tile for wall, ceiling and furniture, macro perforation D-16
Acoustic - Acoustic - Tile
Structure: Veneer composed of end grain wood and wood with the grain veneers, glued onto one side of a substrate, groove and slip tongue connection, and an acoustic fleece on the reverse side
Delivery: With perforation and an acoustic fleece on the reverse side, finished with a matt flame-retardant, UV-cured polyurethane acrylic varnish, delivered with corresponding installation (clip) system, per tile
Available in: Birch, Beech, Oak, Pine, Pine/Ocoumé, Meranti, Ocoumé, Poplar, Deal
Combination of wood: Different combinations of kinds of wood are possible, upon request
Standard dimensions, l x w x t:
± 15.75 x 15.75 x 0.69 (0.59 mdf + 0.10 Plexwood)"
± 23.62 x 23.62 x 0.69 (0.59 mdf + 0.10 Plexwood)"
± 47.24 x 47.24 x 0.69 (0.59 mdf + 0.10 Plexwood)"
Standard veneer: 0° long grain (l) = 15.75 > 47.24"
Optional veneer: 90° cross grain (l) = 15.75 > 47.24", geometric patterns, diagonal 15°, 30°, 45°, square/rectangle 0°/90°, herringbone +15°/-15°, +30°/-30°, +45°/-45°
Standard substrate: 0.59" mdf, low-formaldehyde E1 / PEFC/FSC mixed sources
Optional substrate: Mdf TSCA-compliant or zero added formaldehyde, mdf fire retardant (Euroclass B) or mdf fire retardant (Euroclass B) and TSCA-compliant, others upon request
Optional build-up: Tile in combination with a regular backing veneer of 0.10" ocoumé (for additional stability, depending on dimensions and hanging system)
Standard acoustic pattern:
Micro-perforation T-8, regular pattern, front ∅ 0.06" and rear ∅ 0.20", c-t-c 0.31", αw (Alpha value) is 0.50, NRC is 0.65
Optional acoustic patterns:
Medium-perforation T-16, regular pattern, front ∅ 0.12" and rear ∅ 0.20", c-t-c 0.63", αw is 0.65, NRC is 0.65
Macro-perforation D-16, regular pattern, front ∅ 0.20" and rear ∅ 0.20", c-t-c 0.63", αw is 0.40, NRC is 0.45
Special acoustic patterns: Upon request
Acoustic testing: Test results and data shown are based on ISO 354:1985, according to EN 20354, 1993 acoustic measurement of sound absorption in a reverberation room, ISO 11654:1997 acoustic sound absorbing for use in buildings, and ASTM-C-423-90a acoustic standard test method for sound absorption coefficients by the reverberation room method. All these tests were carried out on veneered and varnished panels, complete with acoustic patterns, with an acoustic fleece on the reverse of each panel and a 2 inch stone wool layer with a density of 2.89 lb/ft³. Measurements and calculations were carried out on a 1/3 octave band with a bandwidth of 125 - 4000 Hz
Reference for sound absorption measured: The actual degree of sound absorption (αW) and Noise Reduction Coefficient (NRC) is influenced by the exact distance between the panel and the building wall or ceiling
Specifications varnish: Matt flame-retardant polyurethane acrylic UV-cured varnish, scratch resistant, dirt- and water repellent, non-toxic, free of formaldehyde and VOCs and 100% recyclable
General processing: For professional processing only, Plexwood is composed of end grain wood and wood with the grain, this means that processing differs significantly from other wood products, when applicable, follow the instructions of the products chosen, and see our general guidelines
Assembly Acoustic: When composing acoustic materials with a perforation pattern, consider how this pattern can best be assembled for optimal results. This will have to be assessed visually while processing. If necessary, cut to size to achieve this and connect the tiles together properly
Reference samples: Wood is a natural product, varying in composition, on this website displayed, requested and/or delivered samples are reference samples, requesting a production sample is recommended
Transport/storage: Avoid extreme swings in air humidity and temperature, at all times, allow Plexwood to acclimatize before processing, avoid contact with penetrating fluids or substances
Colour fastness: The influence of sunlight can cause changes in colour
Application possibilities: For the interior, as per the above specifications, Tile is mainly used for (exhibition) walls, ceilings and furniture
Size conversion: Plexwood uses the metric system in all formal communication. No rights can be derived from size conversions to the imperial system. Plexwood converts sizes for your convenience only
Acoustic - Tile for wall and ceiling, standard dimensions and build-up
Acoustic - Tile for wall and ceiling, corresponding installation (clip) system
